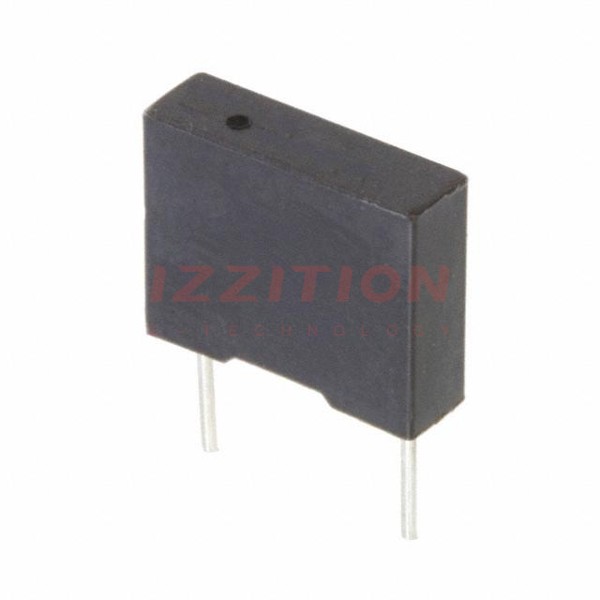

| Part Number | R66ID3220AA7AK | R66ED3220AA7AK |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 160V | 63V |
| Voltage Rating - DC | 250V | 100V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.118" W (10.00mm x 3.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.319" (8.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | - | - |
