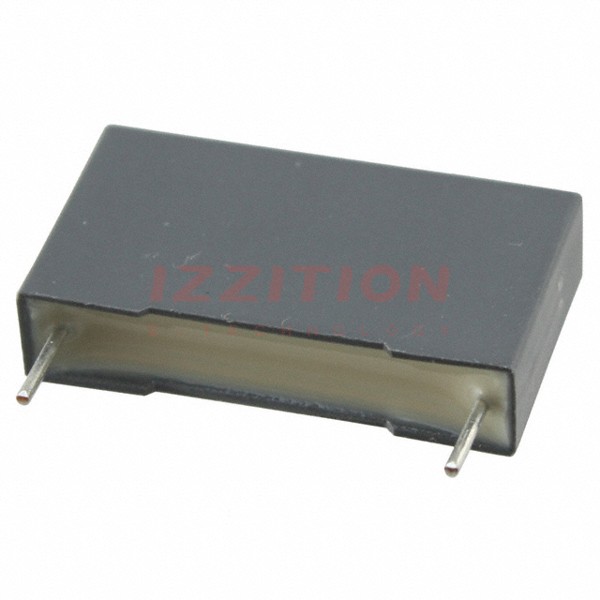

| Part Number | R60MN3470AA30K | R60MI3470AA30K | R60MN3470AA30J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 200V | 200V | 200V |
| Voltage Rating - DC | 400V | 400V | 400V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized | Polyester, Polyethylene Terephthalate (PET), Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 1.043" L x 0.236" W (26.50mm x 6.00mm) |
| Height - Seated (Max) | 0.594" (15.10mm) | 0.575" (14.60mm) | 0.594" (15.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | Automotive | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
