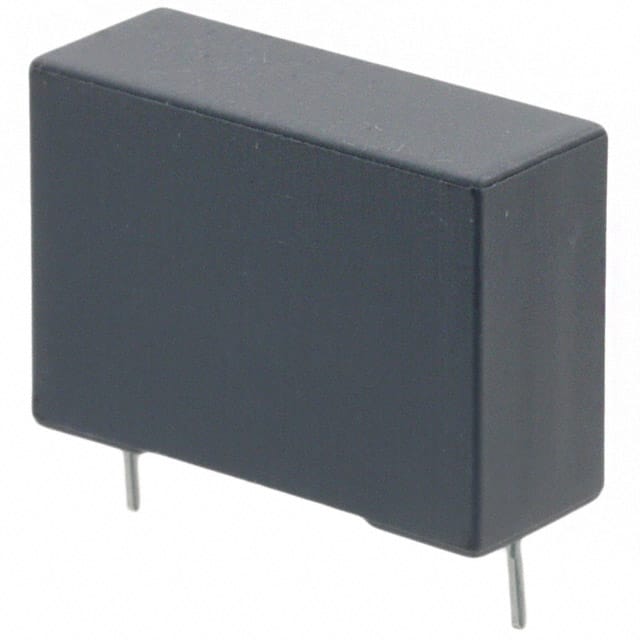

| Part Number | R60IN4220AA30K | R60IR4220AA30K | R60IN4220AA30J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 160V | 160V | 160V |
| Voltage Rating - DC | 250V | 250V | 250V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized | Polyester, Metallized | Polyester, Polyethylene Terephthalate (PET), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 1.043" L x 0.394" W (26.50mm x 10.00mm) |
| Height - Seated (Max) | 0.732" (18.60mm) | 0.673" (17.10mm) | 0.732" (18.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | Automotive | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
