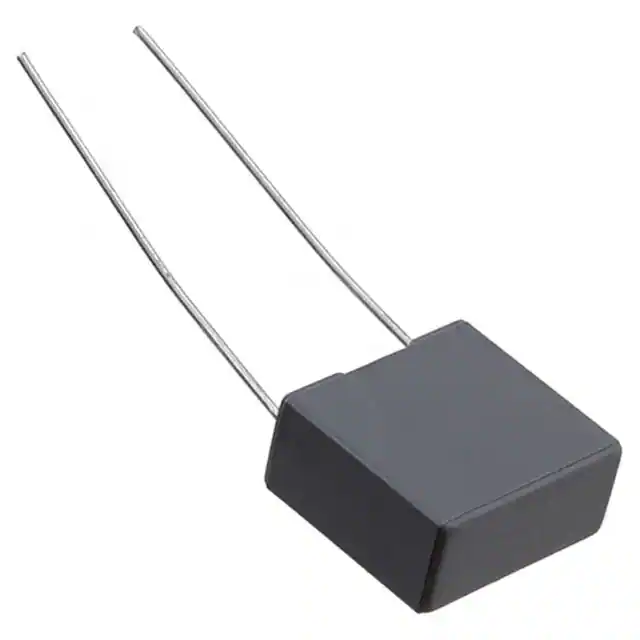

| Part Number | R60IF3470506AK | R60EF3470506AK | R60IF3470506AJ |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 160V | 63V | 160V |
| Voltage Rating - DC | 250V | 100V | 250V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.512" L x 0.236" W (13.00mm x 6.00mm) |
| Height - Seated (Max) | 0.476" (12.10mm) | 0.358" (9.10mm) | 0.476" (12.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | Automotive | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
