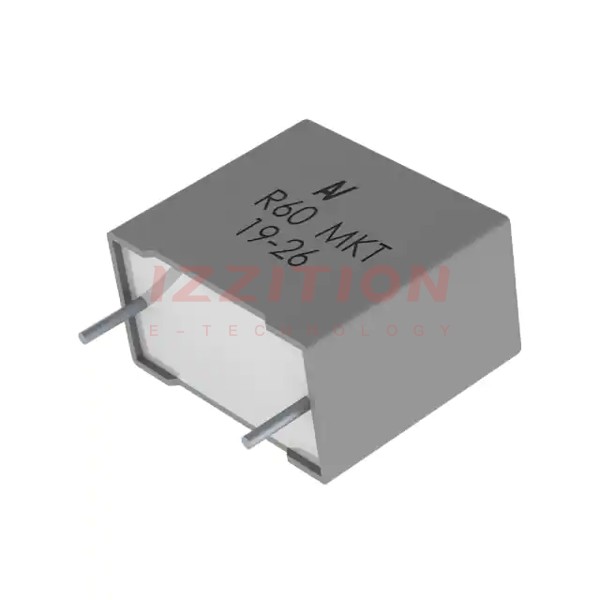

| Part Number | R60EN4470AA30J | R60GN4470AA30J | R60EN4470AA30K |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±5% | ±5% | ±10% |
| Voltage Rating - AC | 63V | 90V | 63V |
| Voltage Rating - DC | 100V | 160V | 100V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Polyethylene Terephthalate (PET), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.673" (17.10mm) | 0.791" (20.10mm) | 0.673" (17.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Automotive | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - |
