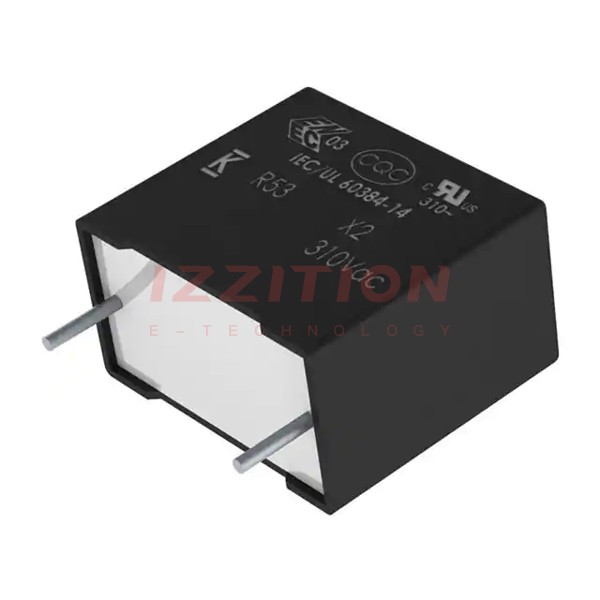

| Part Number | R533W512050P0K | R533W522050P0K | R533W515050P0K | R533W518050P0K | R533W510050P0K |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 12 µF | 22 µF | 15 µF | 18 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 310V | 310V | 310V | 310V | 310V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.654" L x 0.787" W (42.00mm x 20.00mm) |
| Height - Seated (Max) | 1.744" (44.30mm) | 1.783" (45.30mm) | 1.744" (44.30mm) | 1.783" (45.30mm) | 1.587" (40.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 |
| Features | - | - | - | - | - |
