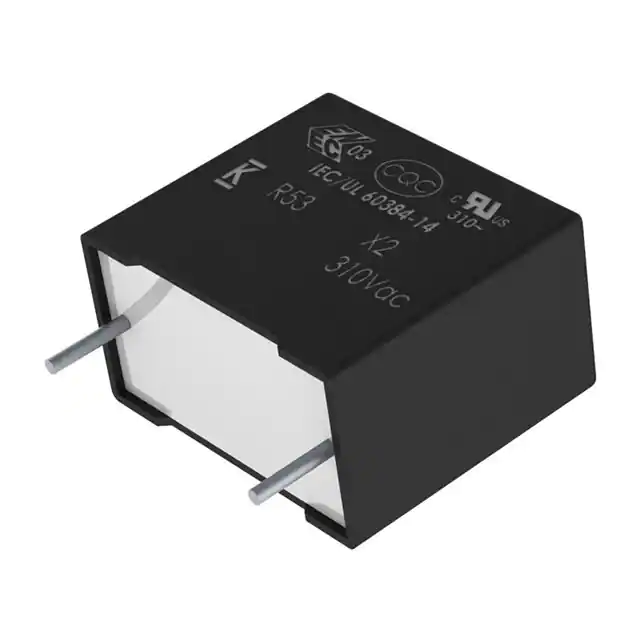

| Part Number | R533N410050P0K | R533N418050P0K | R533N412050P0K | R533N415050P0K |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 µF | 1.8 µF | 1.2 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 310V | 310V | 310V | 310V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
| Height - Seated (Max) | 0.740" (18.80mm) | 0.878" (22.30mm) | 0.740" (18.80mm) | 0.799" (20.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 |
| Features | - | - | - | - |
