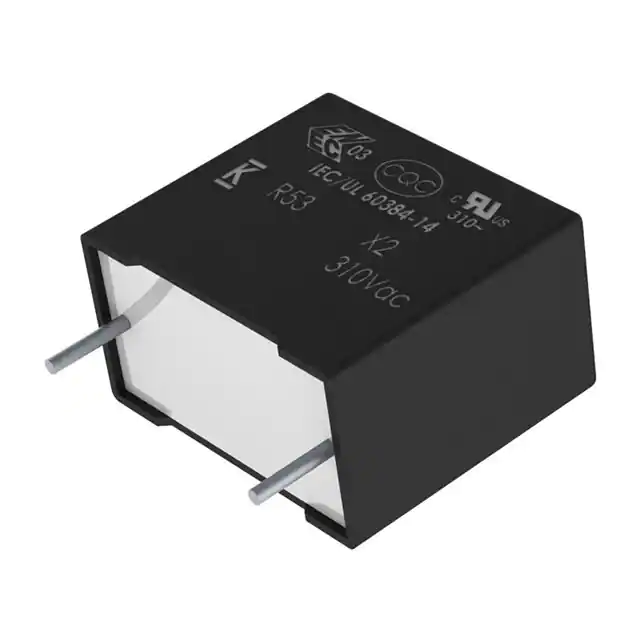

| Part Number | R533I368050P0K | R533N368050P0K | R523I368050P0K |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.68 µF | 0.68 µF | 0.68 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 310V | 310V | 310V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.709" L x 0.433" W (18.00mm x 11.00mm) |
| Height - Seated (Max) | 0.760" (19.30mm) | 0.642" (16.30mm) | 0.752" (19.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive |
| Ratings | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 |
| Features | - | - | - |
