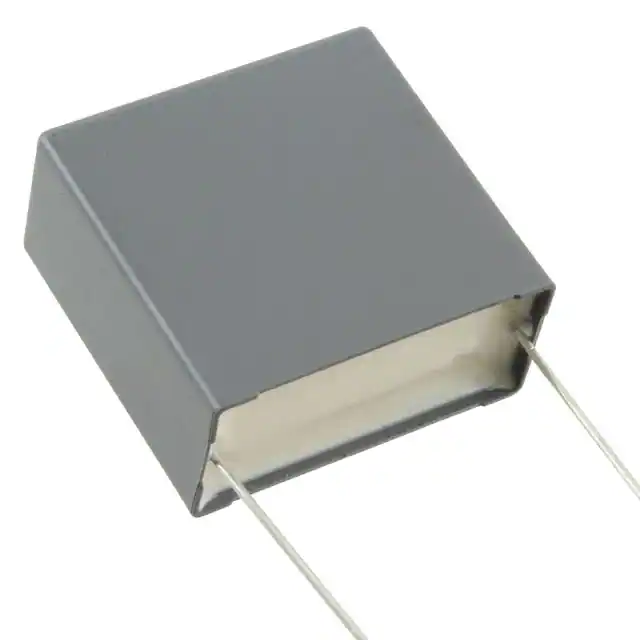

| Part Number | R474R41005001K | R474R410050A1K | R475R41005001K | R474R41505001K |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 440V | 440V | 520V | 440V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 85°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.303" (33.10mm) | 1.303" (33.10mm) | 1.303" (33.10mm) | 1.461" (37.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | Automotive; EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X1 | AEC-Q200, X2 | X2 |
| Features | - | - | - | - |
