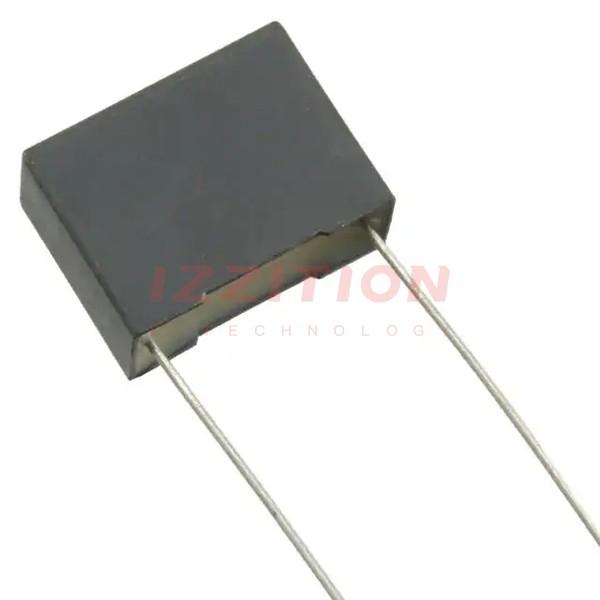

KEMET-R474N327050A1KV057 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.27 µF
Tolerance:	±10%
Voltage Rating - AC:	440V
Voltage Rating - DC:	1000V (1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.043" L x 0.512" W (26.50mm x 13.00mm)
Height - Seated (Max):	0.870" (22.10mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	Automotive; EMI, RFI Suppression
Ratings:	AEC-Q200, X1
Features:	-

KEMET R474N327050A1KV057
