Please send RFQ , we will respond immediately.

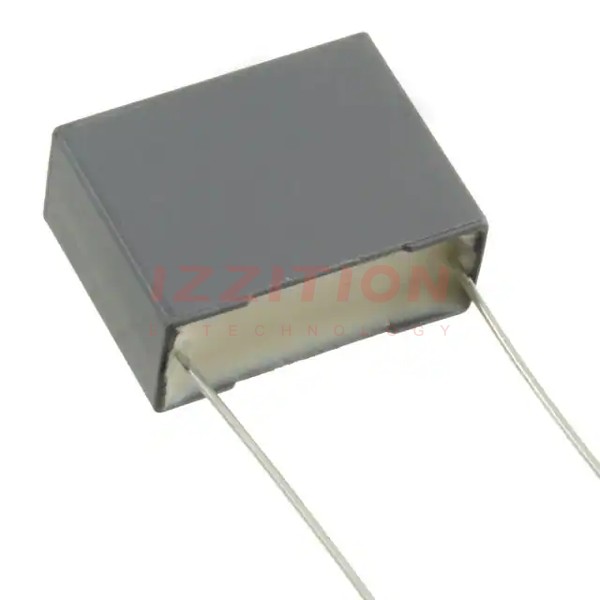

| Part Number | R474N32205001K | R474N322050A1K | R474R32205001K | R475N32205001K | R474N32204001K |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 440V | 440V | 440V | 520V | 440V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 85°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
| Height - Seated (Max) | 0.791" (20.10mm) | 0.791" (20.10mm) | 0.673" (17.10mm) | 0.791" (20.10mm) | 0.791" (20.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | X2 | X1 | X2 | AEC-Q200, X2 | AEC-Q200, X2 |
| Features | - | - | - | - | - |
