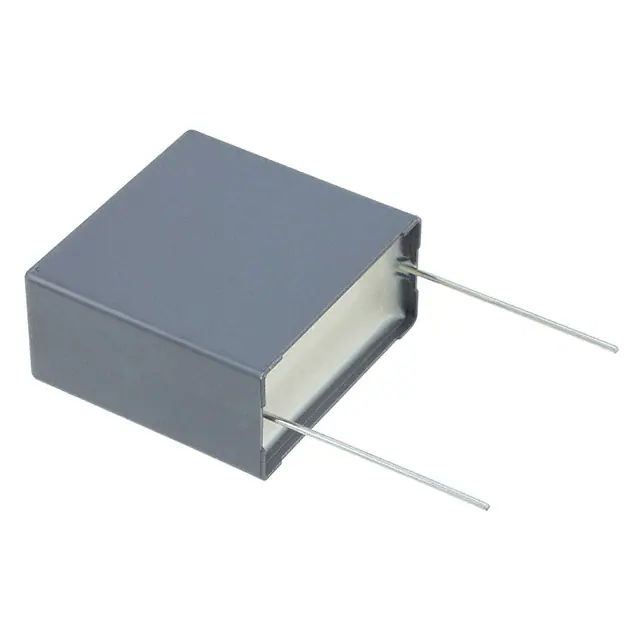

| Part Number | R46KW422000M1M | R46KW422040M1M | R46KR422000M1M | R46KW422000M1K |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% | ±20% | ±10% |
| Voltage Rating - AC | 275V | 275V | 275V | 275V |
| Voltage Rating - DC | 560V | 560V | 560V | 560V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.634" L x 0.512" W (41.50mm x 13.00mm) |
| Height - Seated (Max) | 0.949" (24.10mm) | 0.949" (24.10mm) | 1.106" (28.10mm) | 0.949" (24.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 | X2 |
| Features | - | - | - | - |
