Please send RFQ , we will respond immediately.

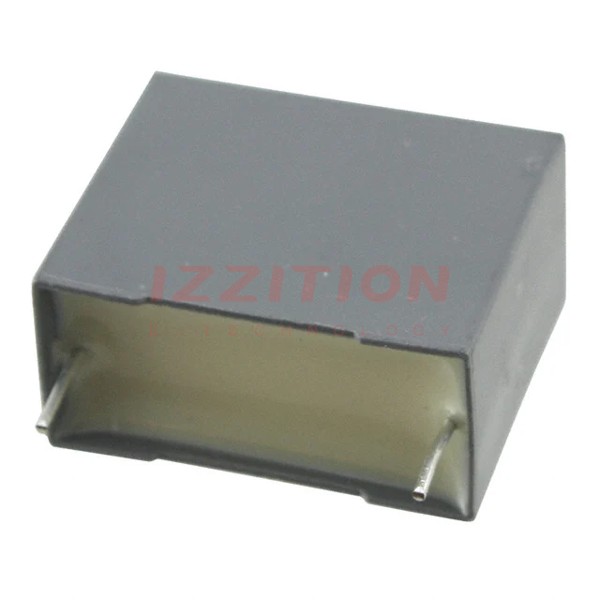

| Part Number | R46KN422000P0M | R46KN422040P0M | R46KR422000P0M |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 275V | 275V | 275V |
| Voltage Rating - DC | 560V | 560V | 560V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 1.260" L x 0.512" W (32.00mm x 13.00mm) |
| Height - Seated (Max) | 0.870" (22.10mm) | 0.870" (22.10mm) | 0.870" (22.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 |
| Features | - | - | - |
