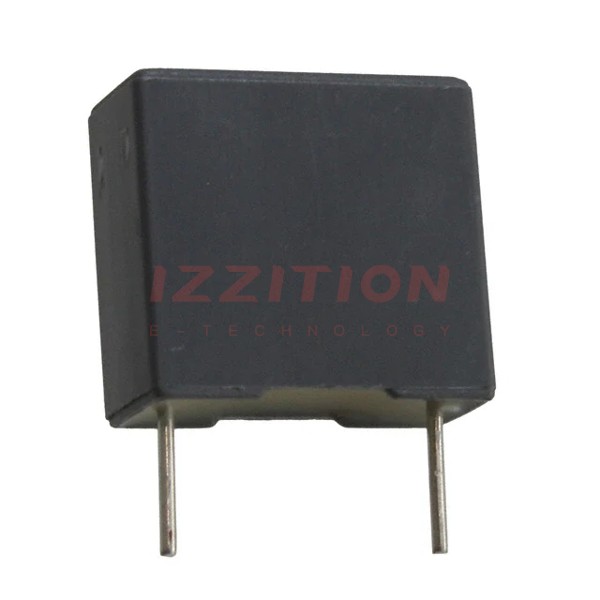

| Part Number | R46KF3100CKM1M | R46KI3100CKM1M | R46KF3100CKP1M |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 275V | 275V | 275V |
| Voltage Rating - DC | 560V | 560V | 560V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.512" L x 0.197" W (13.00mm x 5.00mm) |
| Height - Seated (Max) | 0.476" (12.10mm) | 0.437" (11.10mm) | 0.437" (11.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 |
| Features | - | - | - |
