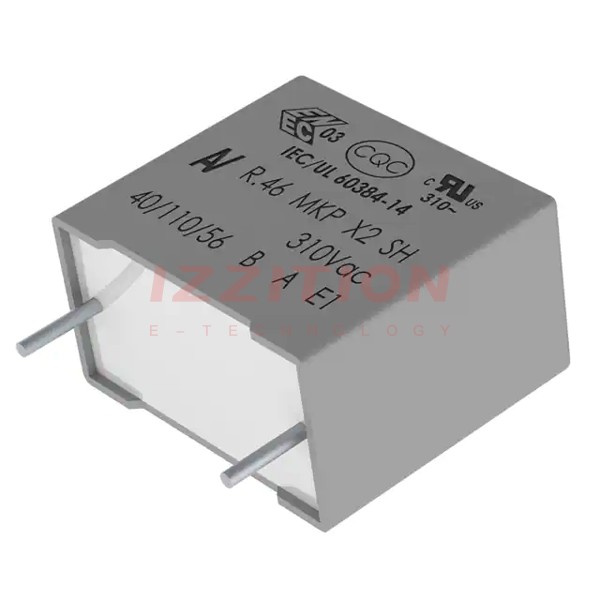

| Part Number | R463I247040H1M | R463I347040H1M | R463I24704001M |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.047 µF | 0.47 µF | 0.047 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 310V | 310V | 310V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.709" L x 0.197" W (18.00mm x 5.00mm) |
| Height - Seated (Max) | 0.437" (11.10mm) | 0.752" (19.10mm) | 0.437" (11.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 |
| Features | - | - | - |
