Please send RFQ , we will respond immediately.

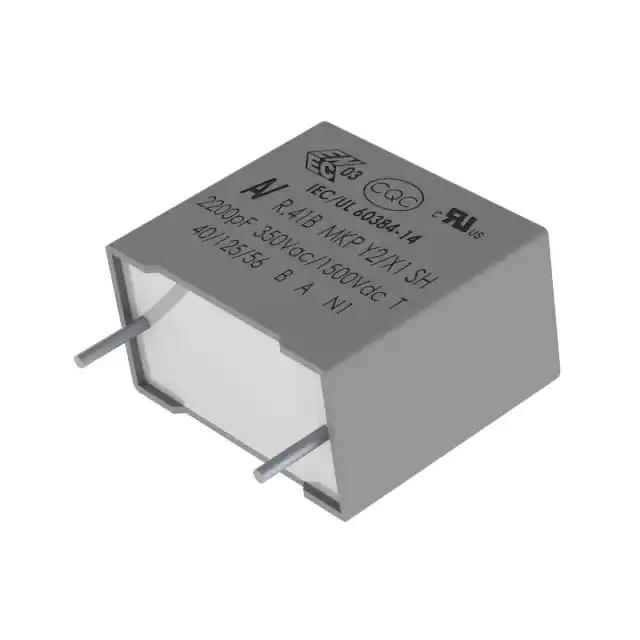

| Part Number | R41BI222050T1K | R413I222050T1K | R41BI222050T0K |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.022 µF | 0.022 µF | 0.022 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 350V | 300V | 350V |
| Voltage Rating - DC | 1500V (1.5kV) | 1500V (1.5kV) | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.709" L x 0.295" W (18.00mm x 7.50mm) |
| Height - Seated (Max) | 0.476" (12.10mm) | 0.476" (12.10mm) | 0.535" (13.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X1, Y2 | AEC-Q200, X1, Y2 | AEC-Q200, X1, Y2 |
| Features | - | - | - |
