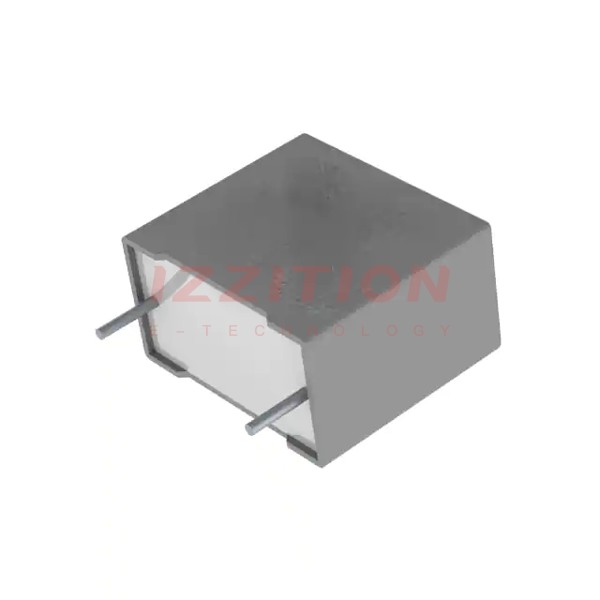

| Part Number | R413R347050T0K | R413W347050T0K | R41BR347050T0K |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 300V | 300V | 350V |
| Voltage Rating - DC | 1500V (1.5kV) | 1500V (1.5kV) | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 1.260" L x 0.709" W (32.00mm x 18.00mm) |
| Height - Seated (Max) | 1.303" (33.10mm) | 0.949" (24.10mm) | 1.303" (33.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, Y2 | AEC-Q200, Y2 | AEC-Q200, X1, Y2 |
| Features | - | - | - |
