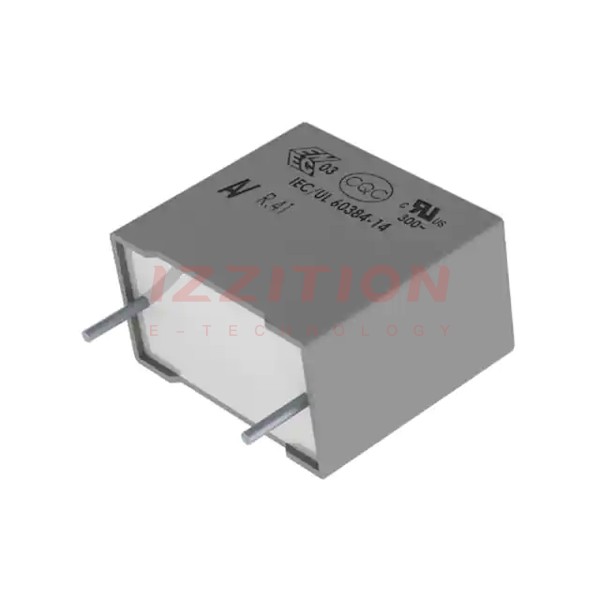

| Part Number | R413D1150JMT0K | R413D1100JMT0K |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1500 pF | 1000 pF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 300V | 300V |
| Voltage Rating - DC | 1500V (1.5kV) | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.358" (9.10mm) | 0.358" (9.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | Automotive, EMI, RFI Suppression | Automotive, EMI, RFI Suppression |
| Ratings | AEC-Q200, Y2 | AEC-Q200, Y2 |
| Features | - | - |
