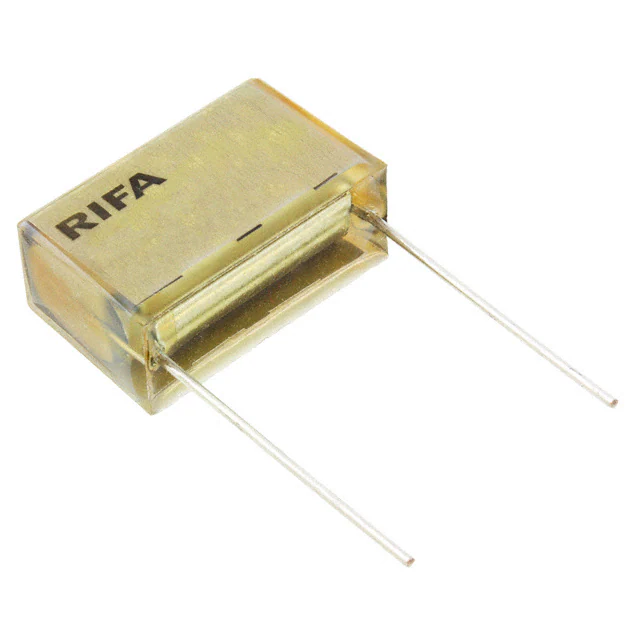

| Part Number | PME271YD6100MR30 | PME271YE6100MR30 | PME271ED6100MR30 | PME271MD6100MR30 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 300V | 300V | 300V | 275V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | - | 630V |
| Dielectric Material | Paper, Metallized | Paper, Metallized | Paper, Metallized | Paper, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 115°C | -40°C ~ 115°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 1.063" L x 0.315" W (27.00mm x 8.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | 0.748" (19.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.000" (25.40mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | Y2 | Y2 | X1 | X2 |
| Features | - | - | - | - |
