Please send RFQ , we will respond immediately.

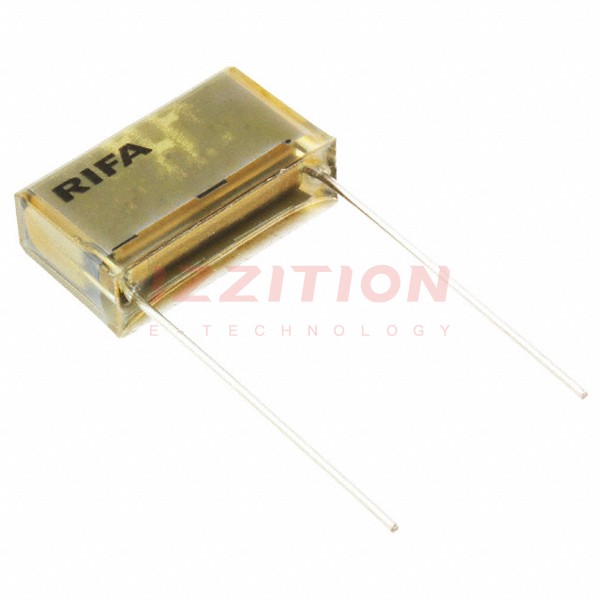

| Part Number | PME271Y533MR30 | PME271M533MR30 | PME271Y433MR30 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.033 µF | 0.033 µF | 3300 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 250V | 275V | 250V |
| Voltage Rating - DC | 1000V (1kV) | - | 1000V (1kV) |
| Dielectric Material | Paper, Metallized | Paper, Metallized | Paper, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 110°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.531" L x 0.161" W (13.50mm x 4.10mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.492" (12.50mm) | 0.323" (8.20mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.799" (20.30mm) | 0.598" (15.20mm) | 0.402" (10.20mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | Y2 | X2 | Y2 |
| Features | - | - | - |
