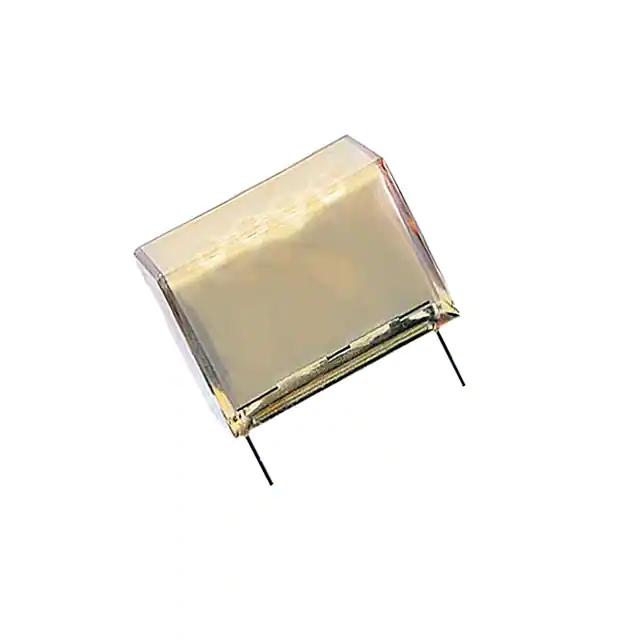

| Part Number | PME271Y510MR19T0 | PME271Y515MR19T0 | PME271Y410MR19T0 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 10000 pF | 0.015 µF | 1000 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Paper, Metallized | Paper, Metallized | Paper, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.531" L x 0.154" W (13.50mm x 3.90mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.433" (11.00mm) | 0.295" (7.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.598" (15.20mm) | 0.598" (15.20mm) | 0.402" (10.20mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | Y2 | Y2 | Y2 |
| Features | - | - | - |
