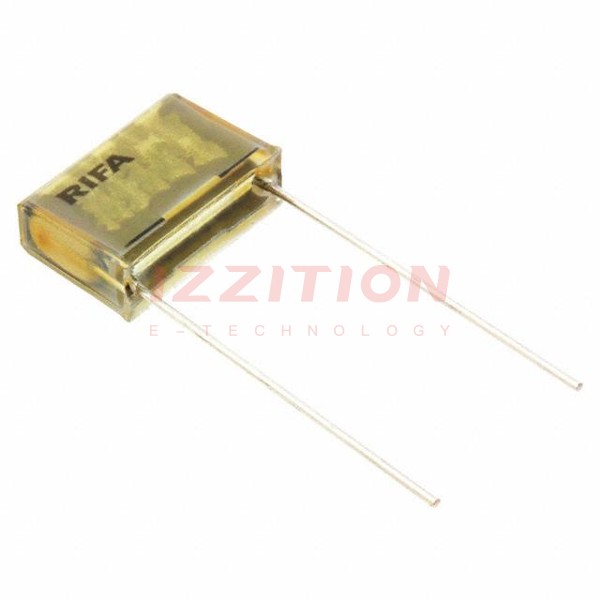

| Part Number | PME271M547MR30 | PME271Y547MR30 | PME271E547MR30 | PME271M447MR30 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF | 4700 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 275V | 250V | 300V | 275V |
| Voltage Rating - DC | - | 1000V (1kV) | - | - |
| Dielectric Material | Paper, Metallized | Paper, Metallized | Paper, Metallized | Paper, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 100°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.531" L x 0.201" W (13.50mm x 5.10mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.563" (14.30mm) | 0.413" (10.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.598" (15.20mm) | 0.799" (20.30mm) | 0.598" (15.20mm) | 0.402" (10.20mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | Y2 | X1 | X2 |
| Features | - | - | - | - |
