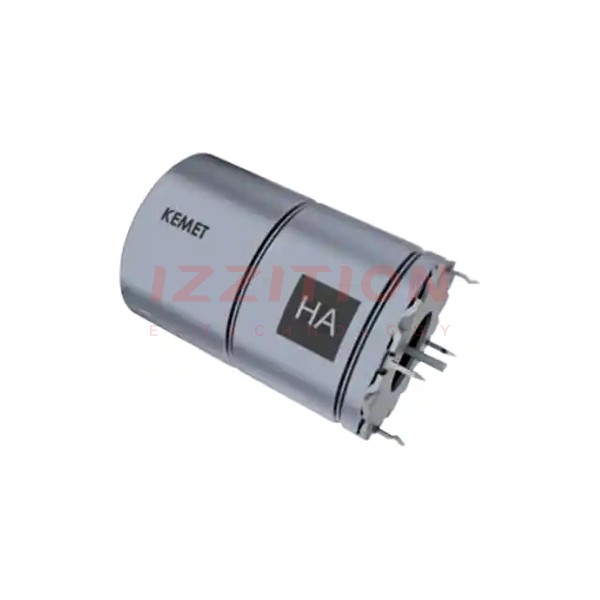

| Part Number | PHH225MLP3560QE4 | PHA225MLP3560QE4 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Hybrid | Hybrid |
| Capacitance | 560 µF | 560 µF |
| Tolerance | -10%, +30% | -10%, +30% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 6mOhm | 92mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Features | - | - |
| Ripple Current @ Low Frequency | 8.18 A @ 100 Hz | 8.18 A @ 100 Hz |
| Ripple Current @ High Frequency | 40.9 A @ 100 kHz | 40.9 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.717" Dia (18.20mm) | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) |
| Height - Seated (Max) | 1.445" (36.70mm) | - |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Mounting Ring - 4 Lead | Axial, Can |
