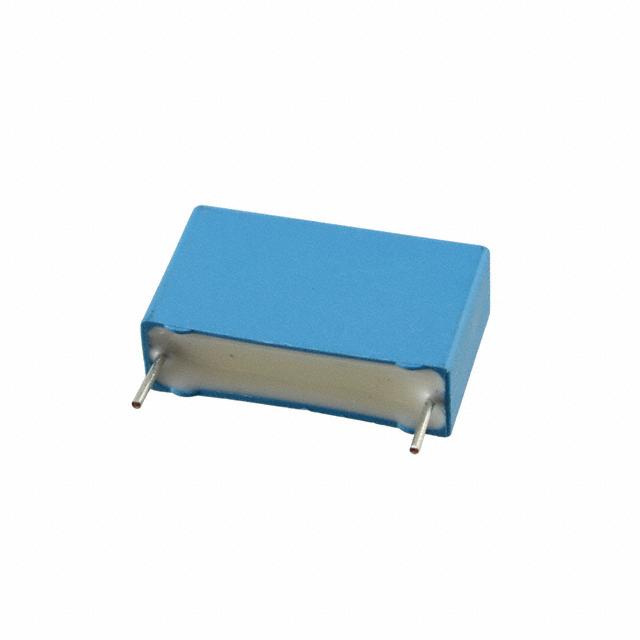

| Part Number | PHE844RD6100MR06L2 | PHE844RD6150MR06L2 | PHE844RD6100KR06L2 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.1 µF | 0.15 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±10% |
| Voltage Rating - AC | 440V | 440V | 440V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 1.024" L x 0.315" W (26.00mm x 8.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.728" (18.50mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X1 | X1 | X1 |
| Features | - | - | - |
