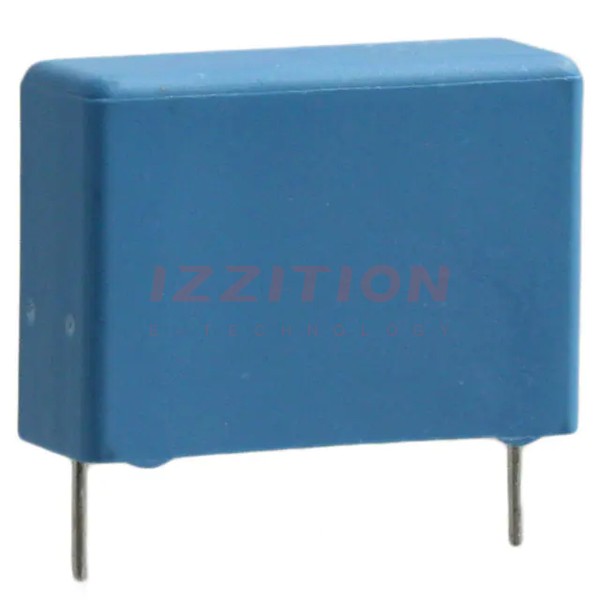

| Part Number | PHE840MD6470MD15R06L2 | PHE840ED6470MD15R06L2 | PHE840MD6470KD15R06L2 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±20% | ±20% | ±10% |
| Voltage Rating - AC | 275V | 300V | 275V |
| Voltage Rating - DC | 760V | 760V | 760V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 1.024" L x 0.354" W (26.00mm x 9.00mm) |
| Height - Seated (Max) | 0.728" (18.50mm) | 0.728" (18.50mm) | 0.728" (18.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 |
| Features | - | - | - |
