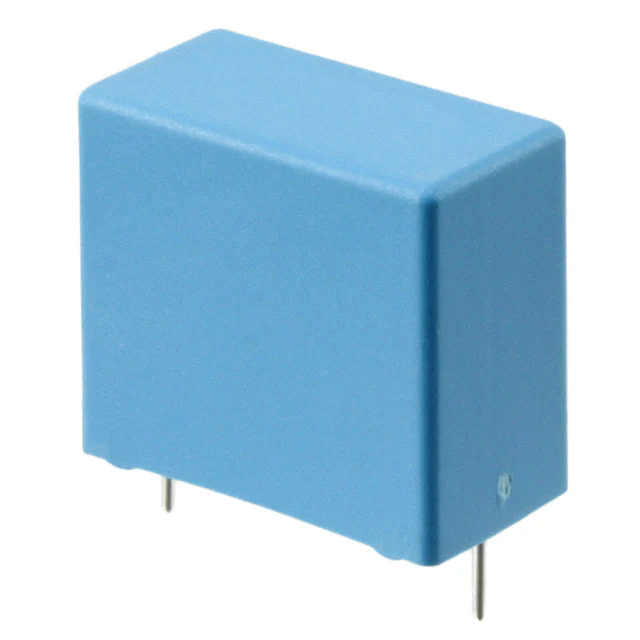

KEMET-PHE450XD5220JD20R06L2 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.022 µF
Tolerance:	±5%
Voltage Rating - AC:	1000V (1kV)
Voltage Rating - DC:	3000V (3kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.024" L x 0.531" W (26.00mm x 13.50mm)
Height - Seated (Max):	0.906" (23.00mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	High Frequency, Switching
Ratings:	-
Features:	-

KEMET PHE450XD5220JD20R06L2
