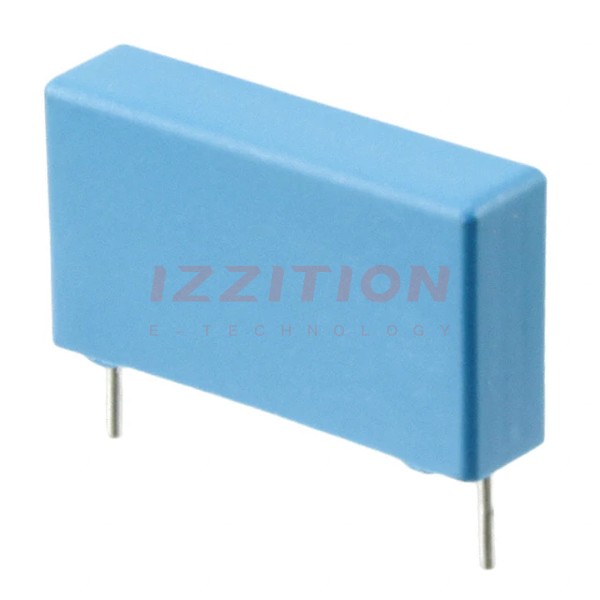

| Part Number | PHE450SD4560JR06L2 | PHE450SD5560JR06L2 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 5600 pF | 0.056 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 700V | 700V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 1.024" L x 0.413" W (26.00mm x 10.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.748" (19.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
