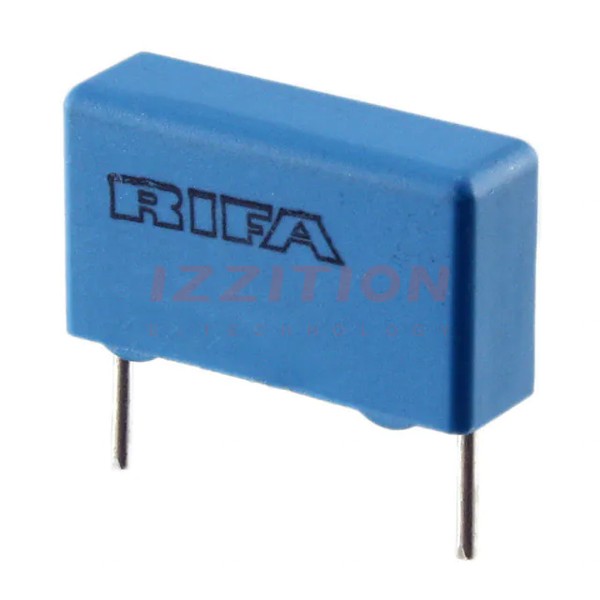

| Part Number | PHE450SB4220JR06 | PHE450SB5220JR06 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 2200 pF | 0.022 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 700V | 700V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
