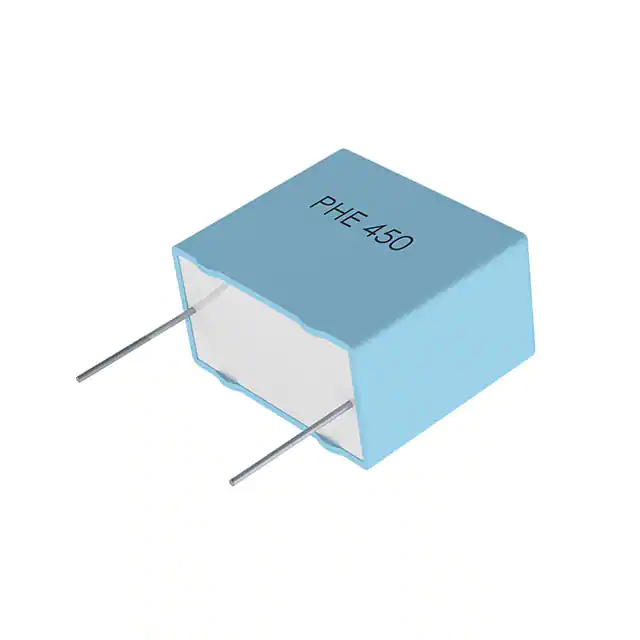

| Part Number | PHE450RR6220JR06L2 | PHE450RD6220JR06L2 | PHE450RF6220JR06L2 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 650V | 650V | 650V |
| Voltage Rating - DC | 1600V (1.6kV) | 1600V (1.6kV) | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 1.240" L x 0.571" W (31.50mm x 14.50mm) |
| Height - Seated (Max) | 0.945" (24.00mm) | 0.965" (24.50mm) | 0.965" (24.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.476" (37.50mm) | 0.886" (22.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
