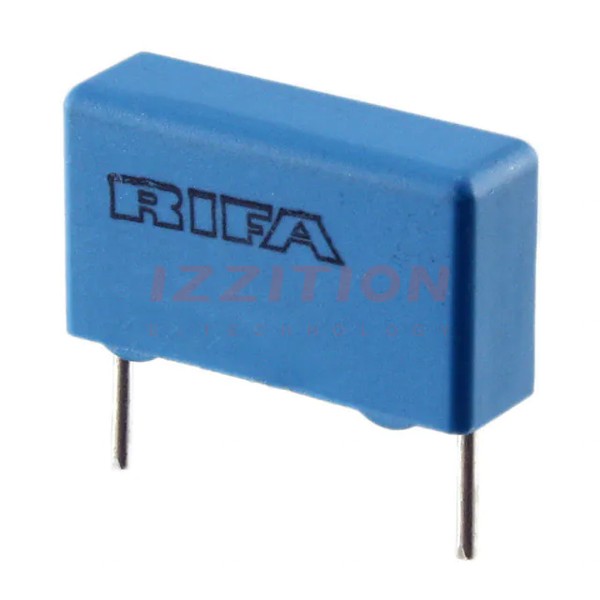

| Part Number | PHE450RB5330JR06 | PHE450MB5330JR06 | PHE450RB4330JR06 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.033 µF | 0.033 µF | 3300 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 650V | 300V | 650V |
| Voltage Rating - DC | 1600V (1.6kV) | 630V | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
