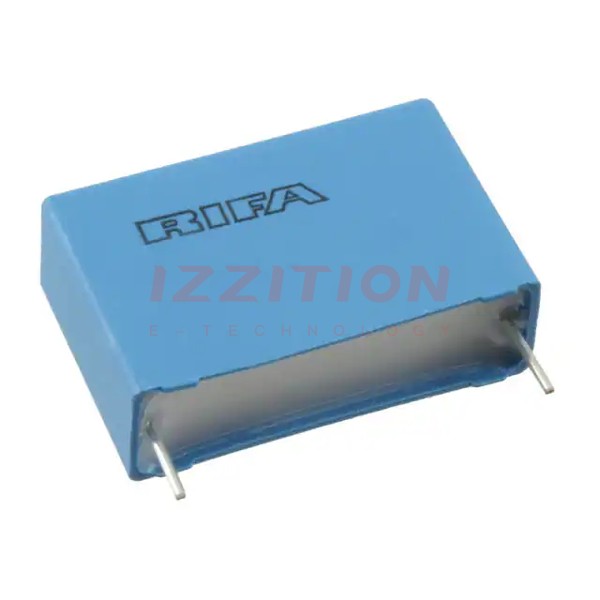

| Part Number | PHE450MF6220JR06L2 | PHE450PF6220JR06L2 | PHE450RF6220JR06L2 | PHE450MD6220JR06L2 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 400V | 600V | 650V | 400V |
| Voltage Rating - DC | 630V | 1000V (1kV) | 1600V (1.6kV) | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 1.240" L x 0.394" W (31.50mm x 10.00mm) | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 1.024" L x 0.354" W (26.00mm x 9.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) | 0.807" (20.50mm) | 0.965" (24.50mm) | 0.728" (18.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
