Please send RFQ , we will respond immediately.

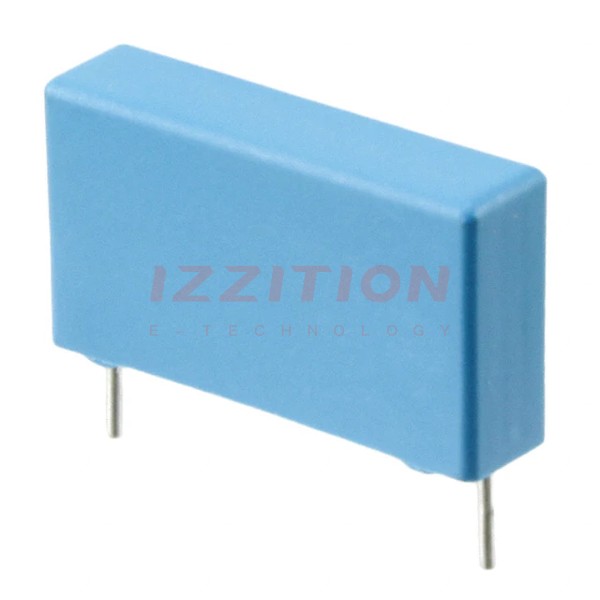

| Part Number | PHE450MD5470JR06L2 | PHE450SD5470JR06L2 | PHE450MD6470JR06L2 | PHE450RD5470JR06L2 | PHE450PD5470JR06L2 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.47 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 400V | 700V | 400V | 650V | 600V |
| Voltage Rating - DC | 630V | 2000V (2kV) | 630V | 1600V (1.6kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 1.024" L x 0.256" W (26.00mm x 6.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.728" (18.50mm) | 0.906" (23.00mm) | 0.650" (16.50mm) | 0.571" (14.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
