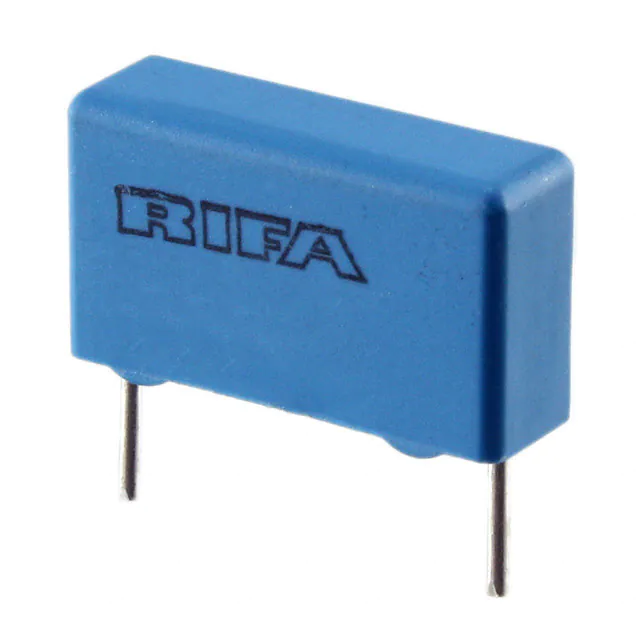

| Part Number | PHE450MB5100JR06 | PHE450PB5100JR06 | PHE450SB5100JR06 | PHE450RB5100JR06 | PHE450MB5120JR06 | PHE450MB6100JR06 | PHE450MA5100JR06 |
|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 0.012 µF | 0.1 µF | 10000 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 400V | 600V | 700V | 650V | 300V | 400V | 300V |
| Voltage Rating - DC | 630V | 1000V (1kV) | 2000V (2kV) | 1600V (1.6kV) | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.492" (12.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.630" (16.00mm) | 0.354" (9.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
