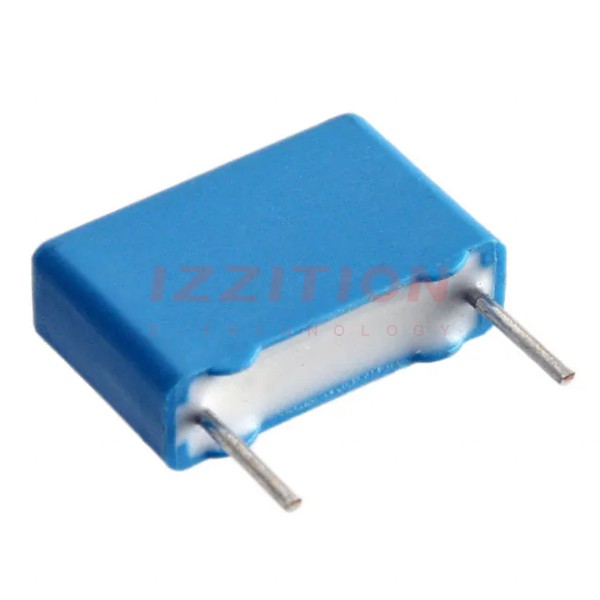

| Part Number | PHE450MA4390JR05 | PHE450MK4390JR05 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 3900 pF | 3900 pF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 300V | 300V |
| Voltage Rating - DC | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.315" (8.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
