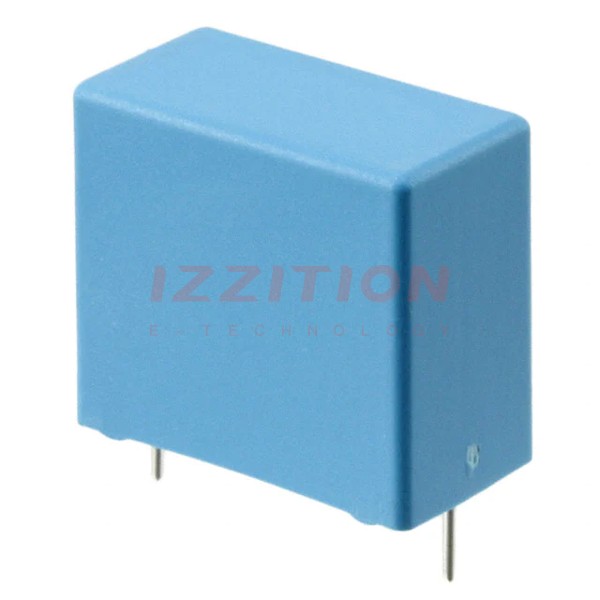

| Part Number | PHE450KF7100JR06L2 | PHE450MF7100JR06L2 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 1 µF | 1 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 250V | 400V |
| Voltage Rating - DC | 400V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.240" L x 0.689" W (31.50mm x 17.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) | 1.102" (28.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
