Please send RFQ , we will respond immediately.

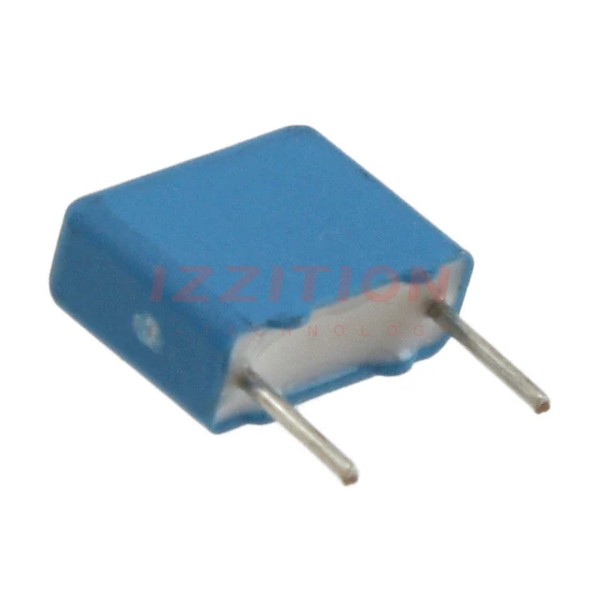

| Part Number | PHE450HK4470JR05 | PHE450MK4470JR05 | PHE450PK4470JR05 | PHE450KK4470JR05 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 4700 pF | 4700 pF | 4700 pF | 4700 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 180V | 300V | 600V | 250V |
| Voltage Rating - DC | 250V | 630V | 1000V (1kV) | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.433" (11.00mm) | 0.315" (8.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
