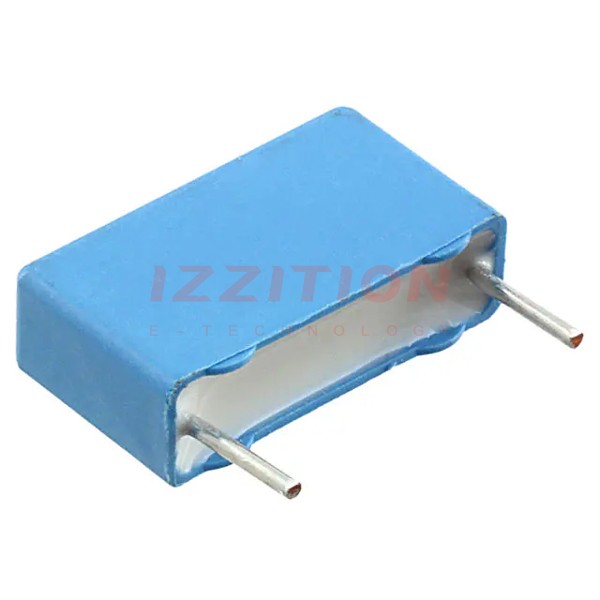

| Part Number | PHE448SB3100JR06 | PHE448SB4100JR06 | PHE448SB3150JR06 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 100 pF | 1000 pF | 150 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 700V | 700V | 700V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.709" L x 0.217" W (18.00mm x 5.50mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - |
| Features | - | - | - |
