KEMET-PHE448RB5100JR06 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	10000 pF
Tolerance:	±5%
Voltage Rating - AC:	650V
Voltage Rating - DC:	1600V (1.6kV)
Dielectric Material:	Polypropylene (PP)
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max):	0.630" (16.00mm)
Termination:	PC Pins
Lead Spacing:	0.591" (15.00mm)
Applications:	High Frequency, Switching; High Pulse, DV/DT
Ratings:	-
Features:	-

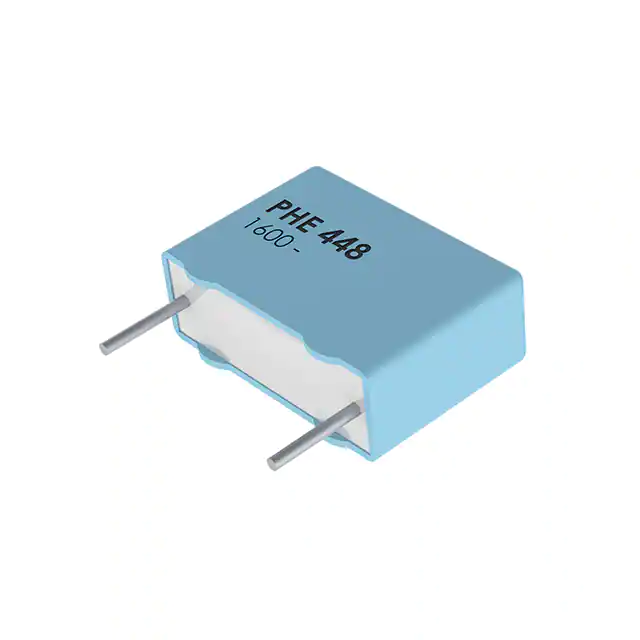

KEMET PHE448RB5100JR06
