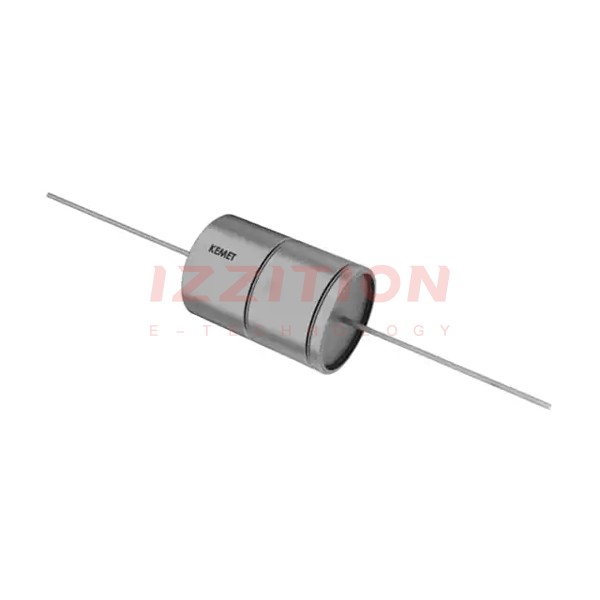

| Part Number | PHA225MLL3380QE4 | PHH225MLL3380QE4 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Hybrid | Hybrid |
| Capacitance | 380 µF | 380 µF |
| Tolerance | -10%, +30% | -10%, +30% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 147mOhm | 7.1mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Features | - | - |
| Ripple Current @ Low Frequency | 7.36 A @ 100 Hz | 7.36 A @ 100 Hz |
| Ripple Current @ High Frequency | 36.8 A @ 100 kHz | 36.8 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.717" Dia x 1.051" L (18.20mm x 26.70mm) | 0.717" Dia (18.20mm) |
| Height - Seated (Max) | - | 1.130" (28.70mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial, Can | Radial, Can - Mounting Ring - 4 Lead |
