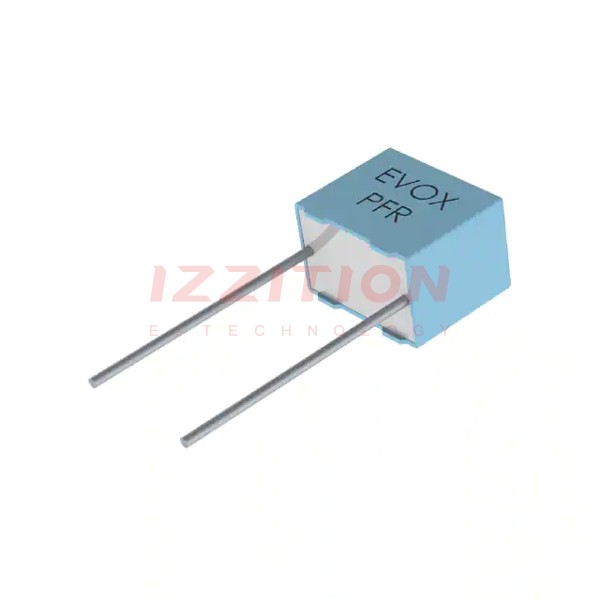

| Part Number | PFR5472F63J11L4BULK | PFR5472J63J11L4BULK | PFR5472H63J11L4BULK |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 4700 pF | 4700 pF | 4700 pF |
| Tolerance | ±1% | ±5% | ±5% |
| Voltage Rating - AC | 40V | 40V | 40V |
| Voltage Rating - DC | 63V | 63V | 63V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 100°C | -55°C ~ 100°C | -55°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.283" L x 0.177" W (7.20mm x 4.50mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - |
| Features | - | - | - |
