KEMET-PES227HKP4460ME4 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4600 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	35mOhm @ 100Hz
Lifetime @ Temp.:	6300 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	6.755 A @ 100 Hz
Ripple Current @ High Frequency:	20.072 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.693" L x 0.709" W (43.00mm x 18.00mm)
Height - Seated (Max):	0.697" (17.70mm)
Surface Mount Land Size:	1.994" L x 0.610" W (50.65mm x 15.50mm)
Mounting Type:	Surface Mount
Package / Case:	Nonstandard SMD

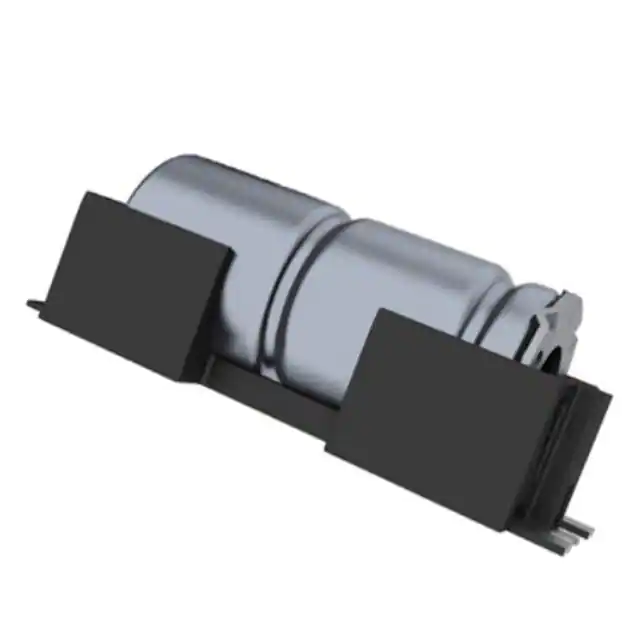

KEMET PES227HKP4460ME4
