KEMET-PEH227HLL4430QE4 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4300 µF
Tolerance:	-10%, +30%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	37mOhm @ 100Hz
Lifetime @ Temp.:	2000 Hrs @ 150°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	2.45 A @ 100 Hz
Ripple Current @ High Frequency:	7 A @ 5 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.717" Dia (18.20mm)
Height - Seated (Max):	1.130" (28.70mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Solder Lug

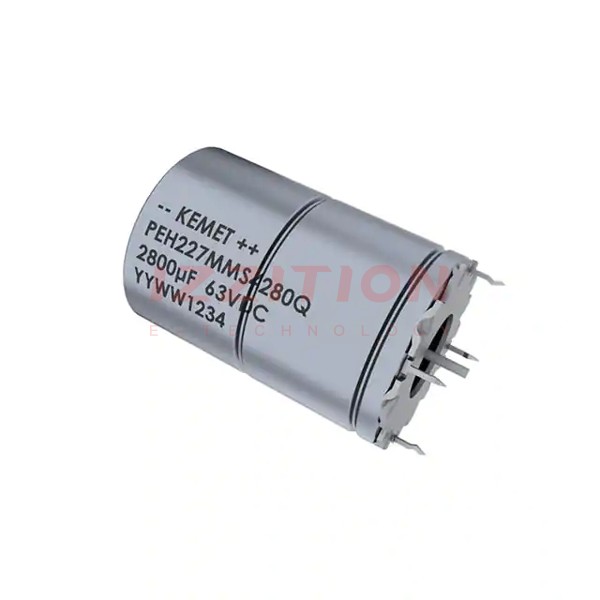

KEMET PEH227HLL4430QE4
