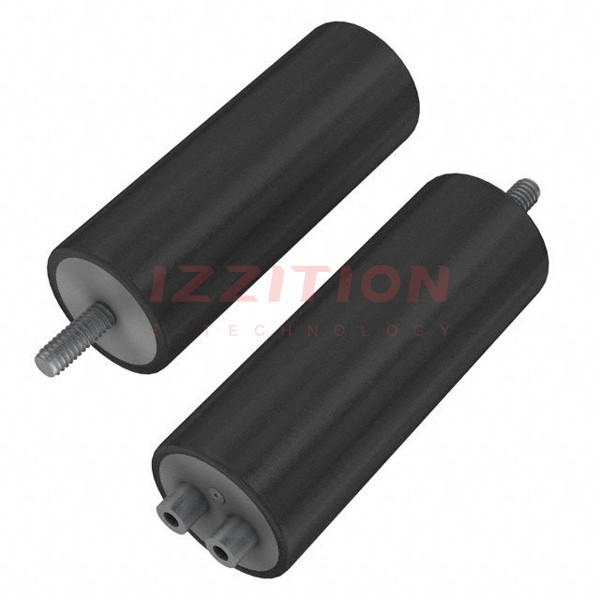

| Part Number | PEH200MD5100MB2 | PEH200MD5100MU2 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 10000 µF | 10000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 13.6 A @ 100 Hz | 13.6 A @ 100 Hz |
| Ripple Current @ High Frequency | - | 27 A @ 10 kHz |
| Impedance | 10 mOhms | - |
| Lead Spacing | 0.512" (13.00mm) | 0.512" (13.00mm) |
| Size / Dimension | 1.441" Dia (36.60mm) | 1.441" Dia (36.60mm) |
| Height - Seated (Max) | 3.760" (95.50mm) | 3.720" (94.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
