KEMET-PEH200MA4470MB2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	32mOhm @ 100Hz
Lifetime @ Temp.:	10000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	9 A @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	21 mOhms
Lead Spacing:	0.512" (13.00mm)
Size / Dimension:	1.441" Dia (36.60mm)
Height - Seated (Max):	2.067" (52.50mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

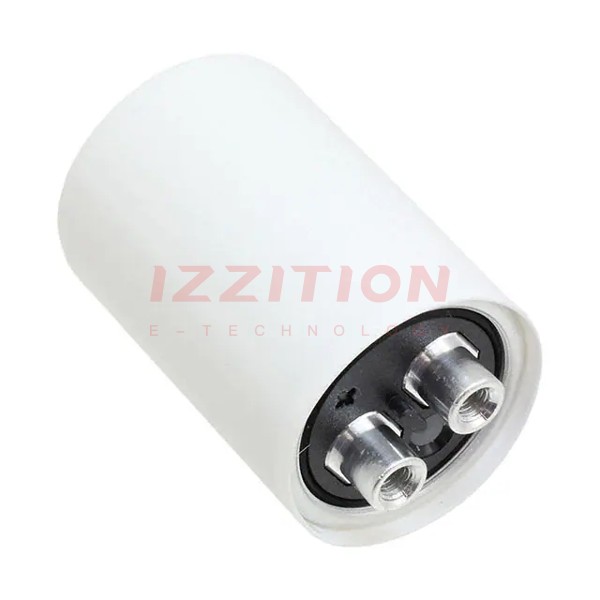

KEMET PEH200MA4470MB2
