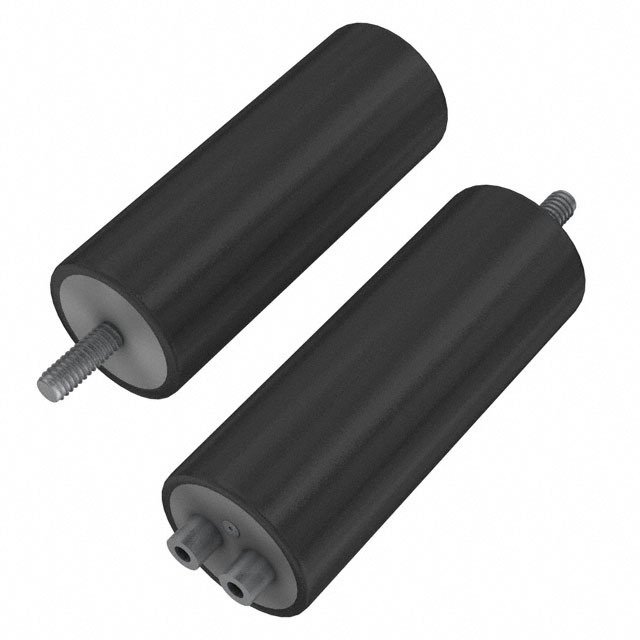

KEMET-PEH200KD5220MB2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	22000 µF
Tolerance:	±20%
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	12mOhm @ 100Hz
Lifetime @ Temp.:	10000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	17.1 A @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	9 mOhms
Lead Spacing:	0.512" (13.00mm)
Size / Dimension:	1.441" Dia (36.60mm)
Height - Seated (Max):	3.760" (95.50mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

KEMET PEH200KD5220MB2
