KEMET-PEH169VH368VMU2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	680 µF
Tolerance:	±20%
Voltage - Rated:	400 V
ESR (Equivalent Series Resistance):	120mOhm @ 100Hz
Lifetime @ Temp.:	14500 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	74 mOhms
Lead Spacing:	0.866" (22.00mm)
Size / Dimension:	2.032" Dia (51.60mm)
Height - Seated (Max):	3.071" (78.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

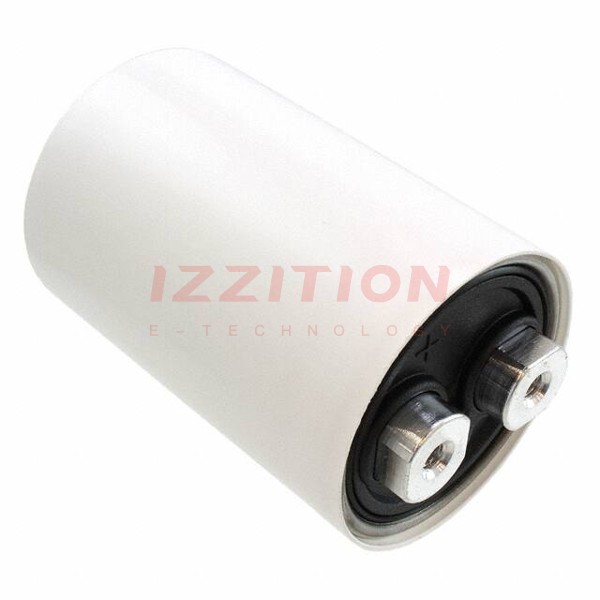

KEMET PEH169VH368VMU2
