KEMET-PEH169SO4220QB2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	-10%, +30%
Voltage - Rated:	250 V
ESR (Equivalent Series Resistance):	56mOhm @ 100Hz
Lifetime @ Temp.:	10000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	1.122" (28.50mm)
Size / Dimension:	2.559" Dia (65.00mm)
Height - Seated (Max):	4.173" (106.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

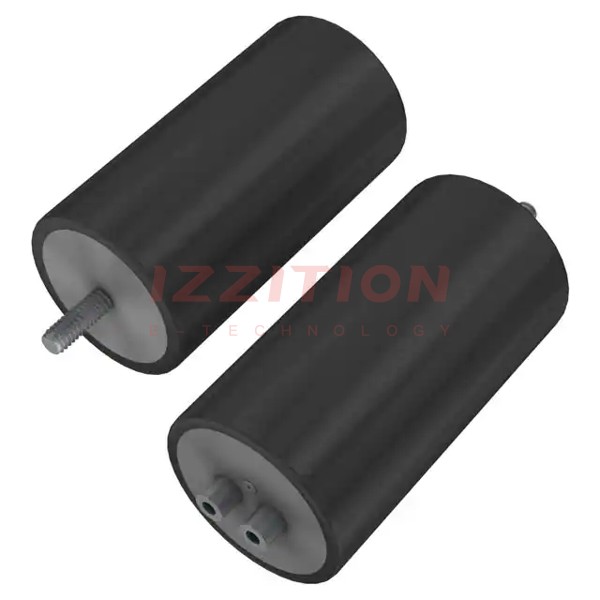

KEMET PEH169SO4220QB2
