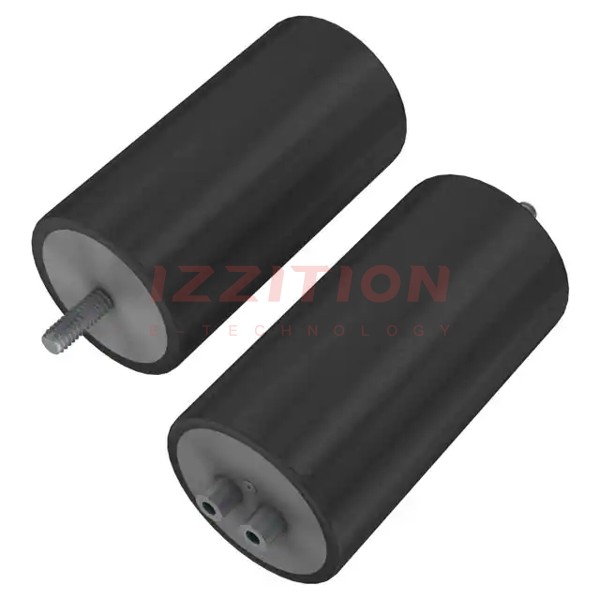

KEMET-PEH169PJ4470QB2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	-10%, +30%
Voltage - Rated:	100 V
ESR (Equivalent Series Resistance):	26mOhm @ 100Hz
Lifetime @ Temp.:	8000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	17 mOhms
Lead Spacing:	0.866" (22.00mm)
Size / Dimension:	2.032" Dia (51.60mm)
Height - Seated (Max):	3.878" (98.50mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

KEMET PEH169PJ4470QB2
