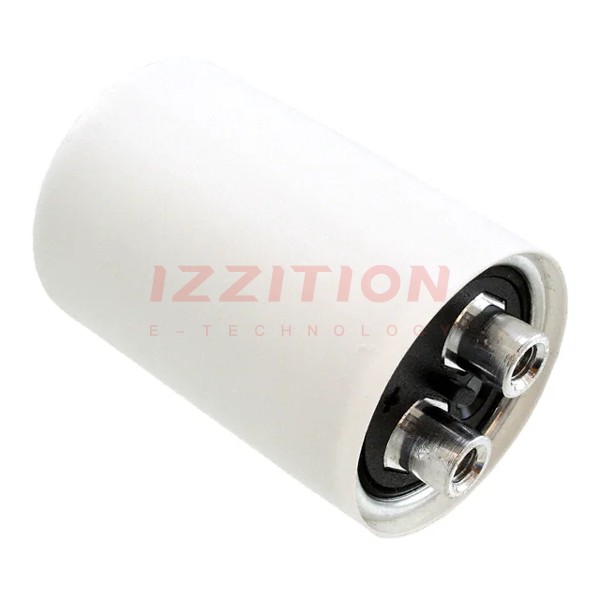

KEMET-PEH169HA460AQU2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	6000 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	14000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	8.7 A @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	2.165" (55.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

KEMET PEH169HA460AQU2
