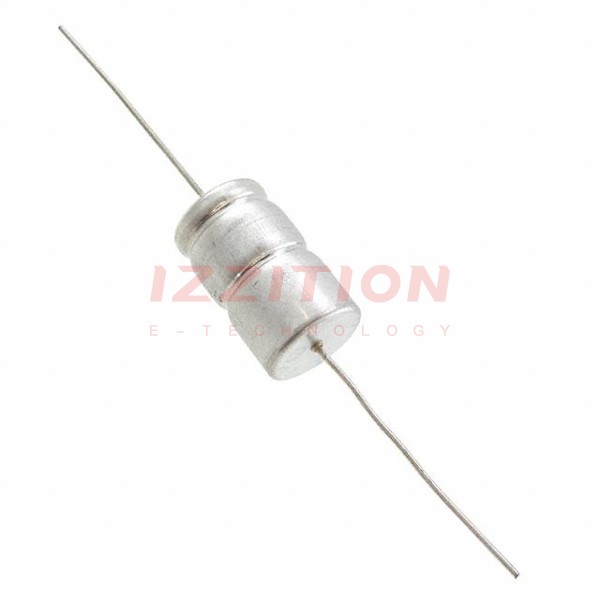

KEMET-PEG226KF3800QE1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	800 µF
Tolerance:	-10%, +30%
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	100mOhm @ 100Hz
Lifetime @ Temp.:	1500 Hrs @ 150°C
Operating Temperature:	-40°C ~ 150°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	1.96 A @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.630" Dia x 1.051" L (16.00mm x 26.70mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

KEMET PEG226KF3800QE1
